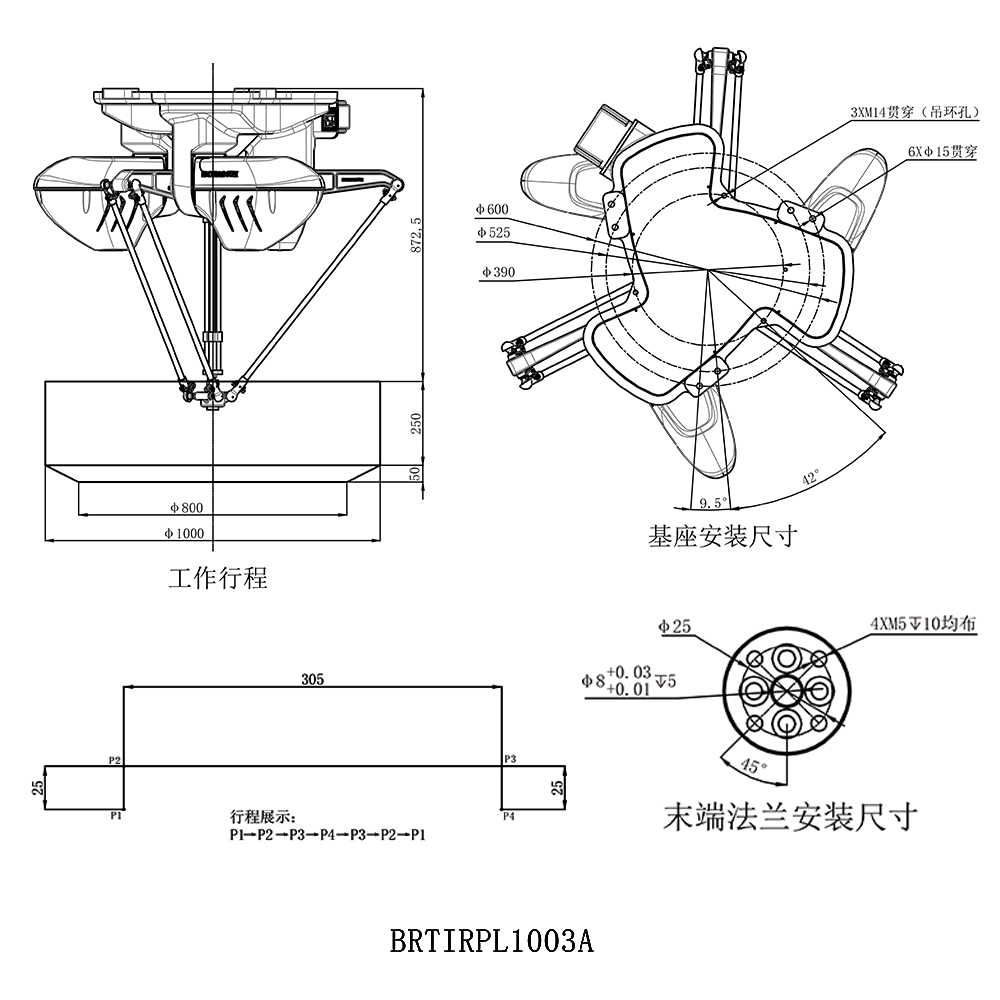

BRTIRPL1003A
BRTIRPL1003A type robot is a four-axis robot that developed by BORUNTE for assembly, sorting and other application scenarios of light, small and scattered materials. The maximum arm length is 1000mm and the maximum load is 3kg. The protection grade reaches IP40. The repeat positioning accuracy is ±0.1mm.
| Item | Range | Rhythm (time/min) | |
| Main arm | Upper | 46.7° | stroke：25/305/25（mm） |
| Hem | 86.6° | ||
| End | J4 | ±360° | 150 time/min |
